Equipment Overview

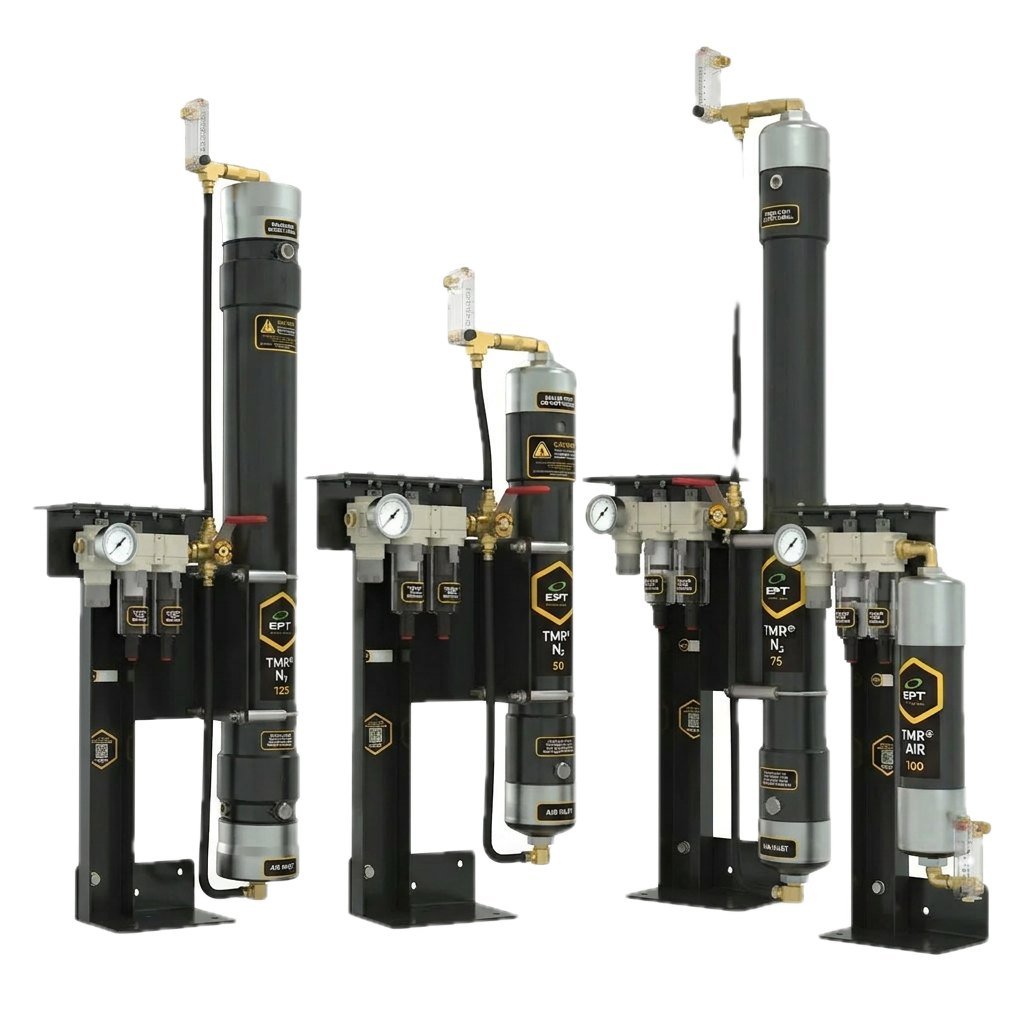

TMR® Water Removal System
Turbine Oil, Hydraulic Oil, Phosphate Ester Fluid
TMR® N2 is a highly effective, low-cost, nitrogen blanketing system that provides unlimited capacity to remove water and eliminate atmospheric water ingression. The system generates high-purity nitrogen from a standard compressed air source to blanket the oil reservoir, removing water and eliminating contact with oxygen — the primary catalyst that accelerates oxidation and oil breakdown in turbine, hydraulic, and phosphate ester fluid systems.
Key Benefits
Why Choose TMR® Water Removal System?
- Provides unlimited capacity to remove water and eliminate atmospheric water ingression
- Generates high-purity nitrogen (≥97%) from a standard compressed air source — no cylinders required
- Quickly removes and maintains low water levels without consumable elements
- Rapidly reduces entrained oxygen and promotes dissolved gas removal
- Eliminates the primary ingression pathway for water and metal contamination
- Promotes chemical stability of the lubricant, reducing maintenance requirements
- Removes up to 10x more contamination when combined with SVR and ICB systems
- Low maintenance: turn it on and let it run
Technical Details
When combined with SVR and ICB filtration systems, TMR® N2 removes up to 10x more contamination by eliminating the primary sources of oil breakdown: oxygen and water ingression. No consumable elements are required outside of routine maintenance. TMR® N2 quickly reduces entrained oxygen, promotes dissolved gas removal, and eliminates the primary ingression pathway for water and metal contamination, thereby promoting chemical stability and reducing maintenance requirements.
Model Comparison
TMR® Water Removal System Comparison
The TMR® Water Removal System uses high-purity nitrogen blanketing to eliminate atmospheric water ingression and oxygen contact. TMR N₂ models provide superior oxidation protection compared to the air-based TMR Air 100.

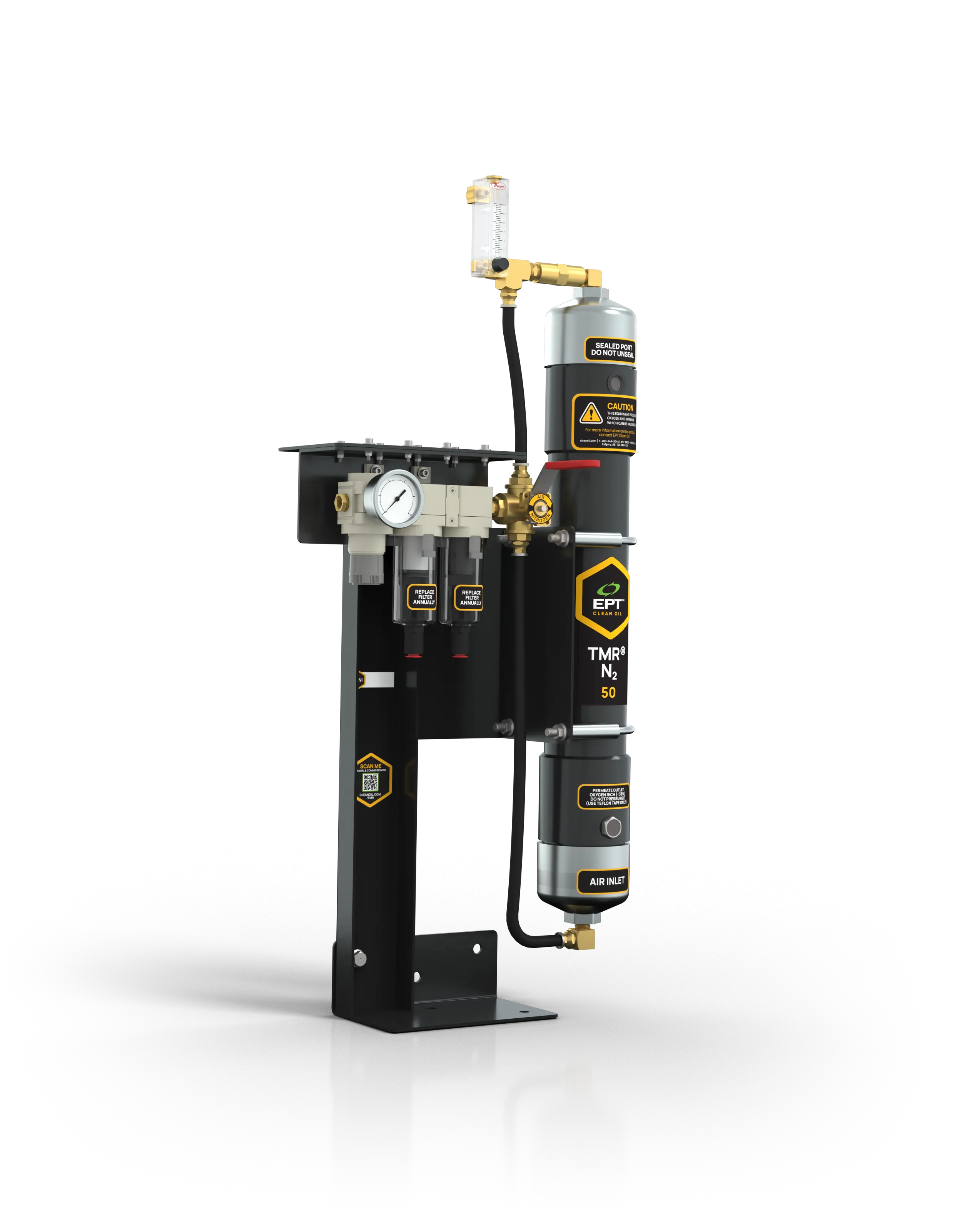

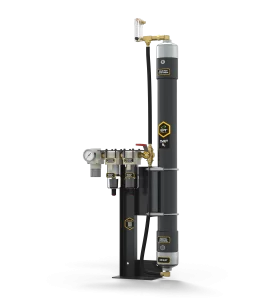

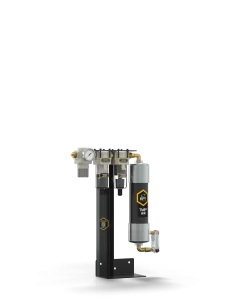

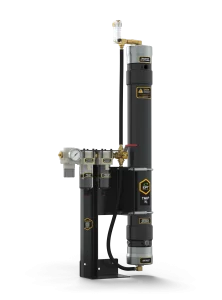

| Specification |  TMR Air 100 |  TMR N₂ 50 |  TMR N₂ 75 Popular |  TMR N₂ 125 Popular |
|---|---|---|---|---|
| Reservoir Volume (Max) | < 7,570 L / 2,000 gal | < 1,532 L / 400 gal | < 3,028 L / 800 gal | < 7,570 L / 2,000 gal |
| Pre-Set Flow Rate | 14 LPM / 30 SCFH | 14 LPM / 30 SCFH | 21 LPM / 45 SCFH | 35 LPM / 75 SCFH |
| % N₂ | 78% | ≥97% | ≥97% | ≥97% |
| Contaminant Targets | Water only | Water + Oxygen | Water + Oxygen | Water + Oxygen |
| Fluid Applications | RO, JET, AW, FRF | RO, JET, AW, FRF | RO, JET, AW, FRF | RO, JET, AW, FRF |
| Daily Water Removal | 100–300 ppm | 100–300 ppm | 100–300 ppm | 100–300 ppm |
