Equipment Overview
SVR® Oil Varnish Removal Skid
Turbine Oil, Phosphate Ester Fluid, Hydraulic Oil
The SVR® oil varnish removal system restores fluid chemistry full-time, offering the unique advantage of removing harmful contaminants during regular turbine operation when dissolved in the oil. Utilizing patented ion-exchange technology, ICB®, the SVR oil varnish removal system eliminates chemical breakdown products and varnish at the molecular level, restoring normal demulsibility values and MPC varnish potential values, and reducing Acid Number, maintaining optimal lubricant quality.
Key Benefits
Why Choose SVR® Oil Varnish Removal Skid?
- Acid removal — continuously reduces acid number throughout oil lifecycle
- Varnish prevention — eliminates soluble and insoluble varnish deposits
- Additive life extension — reduces secondary reactions that deplete antioxidants
- Demulsibility correction — restores oil-water separation performance
- Mitigates risk of servo valve sticking
- Removes bearing deposits and prevents bearing failures
- Significantly reduces solid contamination and ISO particle counts
- Improves fluid resistivity in EHC systems
- Extends lubricant life with as little as 5% annual top-up
- No downtime — can be installed and operated without an outage
Technical Details
The SVR oil varnish removal system is an all-in-one solution that manages chemistry and solid contamination, ideal for cleaning and maintaining phosphate ester fluids, gas turbine lube oils, steam turbine lube oils, and hydraulic oils. Tested and proven worldwide on thousands of critical assets, SVR provides a step-change in lubricant lifecycle management with low maintenance demands outside of routine filter replacement. Manufactured to ISO 9001 standards.
Model Comparison
SVR® Oil Varnish Removal System Comparison
Use the comparison tool to gain a comprehensive comparison of the SVR models, highlighting key differences and benefits. For normal turbine or compressor oil maintenance, the desirable flow rate is to exchange the fluid reservoir volume 1–2× per day. For recovery projects, higher exchange rates are desired.

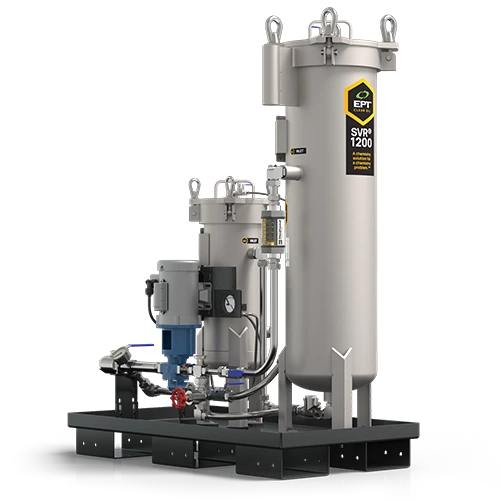

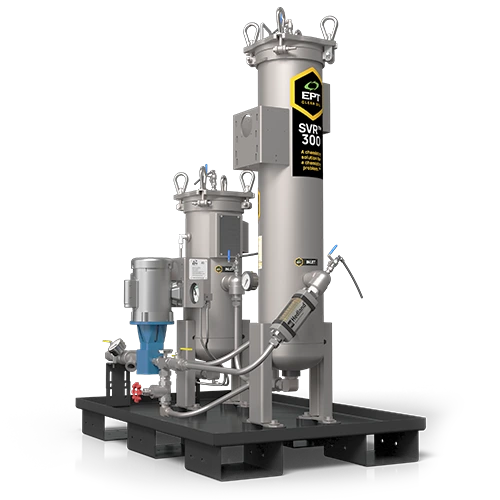

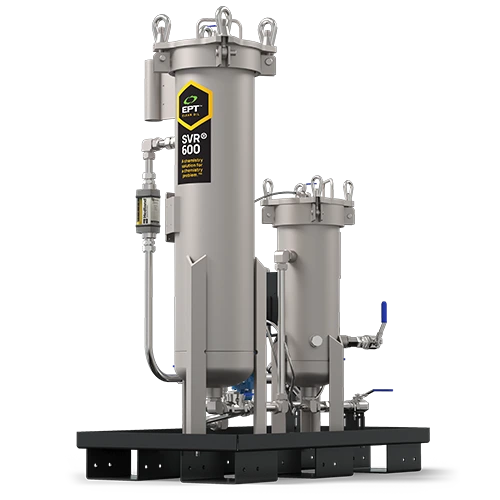

| Specification |  SVR® HYDRO |  SVR® 150 |  SVR® 300 Popular |  SVR® 600 Popular |  SVR® 1200 |
|---|---|---|---|---|---|
| Reservoir Volume (Mineral Oil) | Min: 2,500 L / 660 gal Max: 15,000 L / 3,963 gal | Min: 715 L / 189 gal Max: 2,870 L / 758 gal | Min: 1,440 L / 380 gal Max: 5,740 L / 1,516 gal | Min: 3,785 L / 1,000 gal Max: 16,278 L / 4,300 gal | Min: 5,980 L / 1,579 gal Max: 27,255 L / 7,200 gal |
| Reservoir Volume (Synthetic Oil) | Min: 240 L / 63 gal Max: 960 L / 253 gal | Min: 480 L / 126 gal Max: 1,912 L / 505 gal | Min: 1,435 L / 379 gal Max: 5,680 L / 1,500 gal | Min: 2,272 L / 600 gal Max: 9,085 L / 2,400 gal | Not specified |
| ICB Flow Rate | 19.0 lpm / 5.0 gpm | 2.0 lpm / 0.5 gpm | 4.0 lpm / 1.0 gpm | 12.0 lpm / 3.0 gpm | 19.0 lpm / 5.0 gpm |
| System flow rate through high efficiency filtration | 38.61 lpm / 10.2 gpm | 8.0 lpm / 2.1 gpm | 8.0 lpm / 2.1 gpm | 38.61 lpm / 10.2 gpm | 38.61 lpm / 10.2 gpm |
| ICB Filter Model | RO | RO, FRF, JET, AW | RO, FRF, JET, AW | RO, FRF, JET, AW | RO, FRF, JET, AW |
| Fluid Applications | Rust and oxidation turbine oil only (at this time) | Rust & Oxidation (RO) Phosphate Ester (FRF) Aeroderivative (JET) Anti-Wear Hydraulic (AW) | Same as SVR 150 | Same as SVR 150 | Same as SVR 150 |
| Other Proprietary Filters | TMR® AquaPurge Coalescer | TMR® N2 recommended for synthetic oils | TMR® N2 recommended for synthetic oils | TMR® N2 recommended for synthetic oils | TMR® N2 recommended for synthetic oils |
| Contaminant Targets | Soluble Varnish, Insoluble Varnish, Oxidation by-products, Water, Particulates | Soluble Varnish, Insoluble Varnish, Particulates | Same | Same | Same |
| Electrical Options | General Purpose only | General Purpose (50/60 Hz) | CSA Class 1 Div 1 (50/60 Hz) | CSA Class 1 Div 2 + IECEx/ATEX available | Multiple CSA + IECEx/ATEX options |
